Output Torque 300 in-lb (34 Nm) to 18,000 in-lb (2,034 Nm)

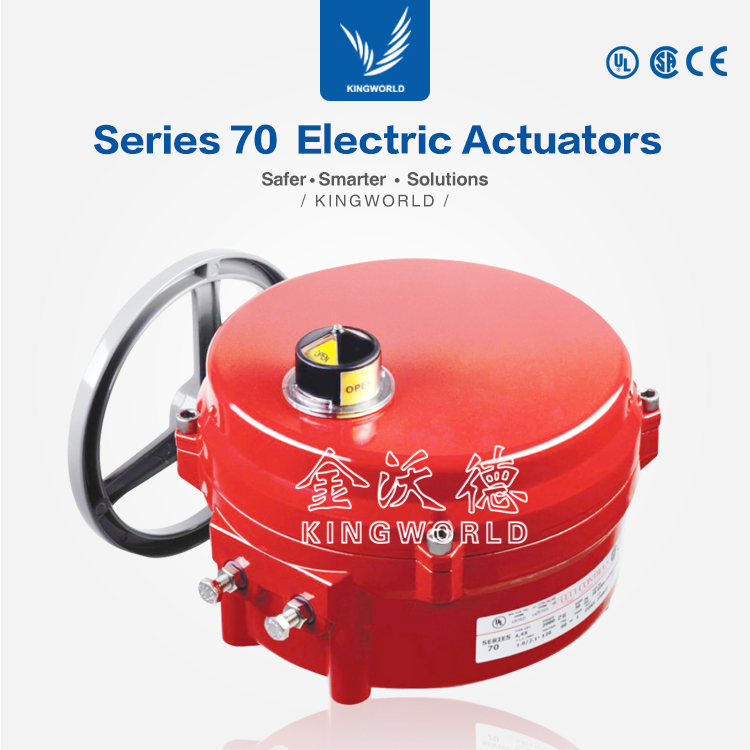

Bray Controls’ years of proven success in electric actuation, combined with innovative engineering, has produced the Series 70 electric actuator. The Series 70 features on/off or modulating control. Bray’s Series 70 electric actuator has many advantages over other actuators including:

1.UL,CSA and CE certification of most units

2.Wiring directly to the terminal strip without interference from other components

3.Simple and unique manual override handwheel system

4.Lowest profile and lightest weight actuator on the market

5.Simple finger or screwdriver adjustment of travel limit cams without interference from other components

6.Highly visible valve status display on most units

Designed like a junction box, the Series 70 offers by far the easiest access to terminal block wiring, cam adjustments and switch installation. Therefore, the time required for field startup and adjustment is greatly reduced, and maintenance can be performed with assured ease and safety.

The Series 70 optional waterproof/ explosion proof unit is UL NEMA 4,4x listed and certified to specifications for USA & Canadian hazardous locations Class-I C&D Div 1&2; Class-II GRPS EF&G Div 1&2. The rugged, heavy duty housing contains precision machined bores and flanges to meet flame path requirements. Waterproof/Explosion proof models are currently available with 800 to 2,000 in-lb. output torque, continuous or intermittent duty.
